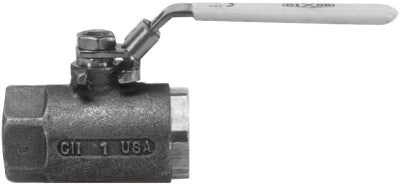

Ball Valves, 1 1/2 in (NPT) Inlet, Female/Female, Stainless Steel

Blow-out proof stem design
Temperature range: -20F to 356F
Not recommended as a throttling valve
For use with water, oil and gas

Quantity 5EA/BOX

Specifications

Activating Fluid=Oil; Water
Ball Material=Stainless Steel
Body Material=Stainless Steel
Connection Type=Female/Female
Designated Fluid=Gas; Oil; Water
Handle Material=Steel
Handle Type=Lever
Height [Nom]=5 in
Inlet Size=1 1/2 in (NPT)
Inlet Type=Female Thread
Length [Nom]=9 3/4 in
Material=PTFE Fluorocarbon Resin
Opening Type=Lever
Operating Pressure (per Fluid)=1000 psi (WOG)
Operating Pressure [Max]=1000 psi
Operating Pressure [Nom]=1000 psi
Operating Temp. [Max]=356 F
Outlet Size=1 1/2 in (NPT)
Outlet Type=Female Thread
Seat Material=PTFE
Stem Material=Stainless Steel
Type=Ball
Width [Nom]=9 in
Wt.=5.3 lb
