REELCRAFT

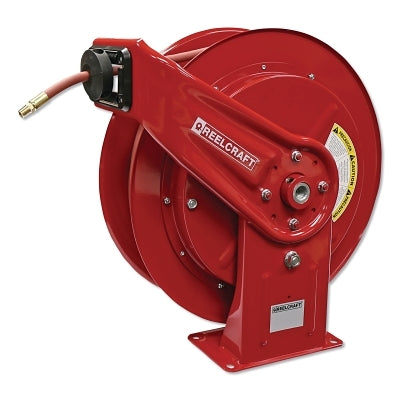

HD HOSE REEL 3/8X75 AIR/WATER

HD HOSE REEL 3/8X75 AIR/WATER

Regular price $1,247.56 USD
Regular price Sale price $1,247.56 USD
Sale Call for availability

Call for availability

SKU

SKU:523-HD76075OLP

The steel guide arm and base are stamped with ribs and gussets and robotically welded to insure maximum strength and lightest possible weight
The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life
Declutching arbor virtually eliminates possibility of spring damage due to reverse winding
Individually powder coated components offer the maximum protection from premature corrosion

Quantity 12 CN/CS

Specifications

Height [Nom]=20-1/4 in
Hose I.D. [Nom]=3/8 in
Hose Length=75 ft.
Hose O.D. [Nom]=.600 in
Inlet Size=1/2" (F)NPT
Length [Nom]=19-3/4"
Material=Steel
Operating Pressure [Nom]=300 psi
Outlet Size=1/2" (F)NPT
Type=Spring Retractable Reel
Width [Nom]=8-1/4"
Wt.=65 lb
