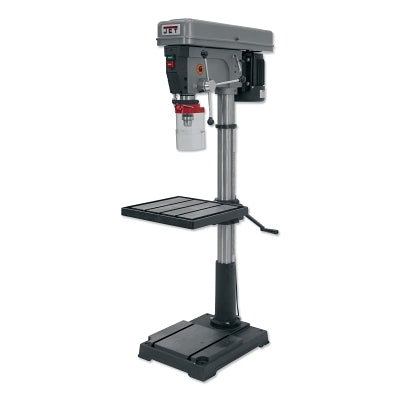

Vendor - JET
SKU - 825-354300
Description
Cast iron head
Head casting features a permanently lubricated ball bearing spindle assembly, using four heavy duty ball bearings mounted in an enclosed quill for extended life
Massive T-slotted production work table
Quantity 1 EA/EA
Specifications
Amps [Nom]=9 A
Chuck Size=5/8 in
Control Type=Crank
Cord Length=6 ft
Depth [Nom]=27.5 in
Drilling Cap.=Mild Steel - 5/8 in ; Cast Iron - 3/4 in
Height [Nom]=63 in
No. of Speeds=12
Phase=1
Speed [Max]=2800 RPM
Speed [Min]=350 RPM
Spindle Travel=3.31 in
Table/Plate Length=14 in
Table/Plate Width=14 in
Tilt [Max]=45 °
Voltage [Nom]=115 V
Width [Nom]=15.75 in
Wt.=276 lb
