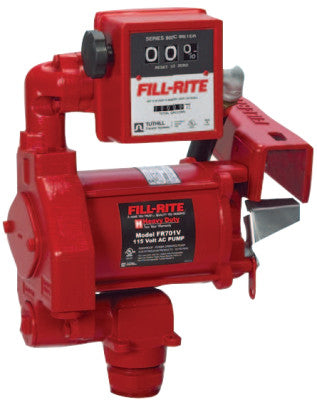

Rotary Vane Pumps with Manual Nozzle, 20 gpm, Rotary Vane Pump

Their rugged motors are explosion-proof and rain-proof to ensure a long life of dependability
Heavy duty cast iron construction
Carbon vanes and ceramic/carbon seals reduce wear and repair expense
Integral check valve with pressure relief on outlet side reduces pressure drop and improves vertical lift
Self priming

Quantity 1EA

Specifications

50 PSI Flow/Power=115 V AC
Amps [Nom]=5.5 A
Applicable Materials=Fuels; Oils
Flow [Max]=20 gal/min
Gear Material=Iron Rotor; Carbon Rtary Vanes
Gear Type=Rotary Vane
Height [Nom]=16 3/5 in
Housing Material=Cast Iron
Includes=3/4 in x 12 ft hose;3/4 in Manual Nozzle;Mechanical Meter (gals)
Inlet Type=Bung
Length [Nom]=19 3/4 in
Mounting=2 in NPT Bung
Outlet Type=NPT
Port Size=1 1/4 in NPT Inlet; 3/4 in NPT Outlet
Power Cap. [Nom]=1/3 hp
Speed [Max]=1,725 rpm
Type=Rotary Vane Pump
Voltage [Nom]=115 VAC
Width [Nom]=11 25/37 in
Wt.=61 lb
