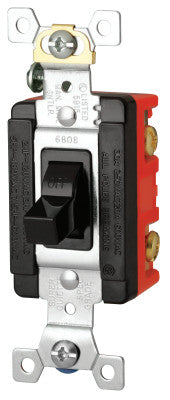

MAN CONT 20/30A 600/250VAC 2POLE B&S BK

Compact design provides extra wiring room for easy, fast installation
Easy-to-read electrical ratings on rugged steel mounting straps ensure accurate identification
Highly visible “ON/OFF” markings on large, rugged toggles make the switch easy to operate and reduce the risk of errors
Cam and roll design provides dependable, trouble-free switch action
Distinct wire pockets and thick-wall arc barriers prevent strands from straying
Robust, single-piece, moveable and stationary contact arms with large silver-cadmium buttons limit heat build-up for excellent continuity and long life
Screw and clamp or box lug terminals to meet individual project requirements

Quantity 1EA

Specifications

Amps [Nom]=20.00 A; 30.00 A
Body Cover Material=Glass-Filled Nylon
Cable/Wire Size [Max]=10.000 AWG
Cable/Wire Size [Min]=14.000 AWG
Color=Brown
Height [Nom]=2 1/2 in
Length [Nom]=4 in
Voltage [Nom]=600.00 V; 250.00 V
Width [Nom]=2 1/2 in
Wt.=0.40 lb
