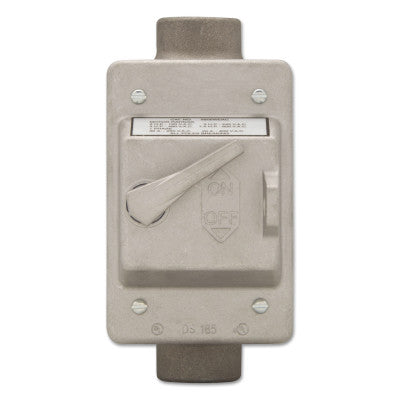

AH6808UDAC IN NEMA 3R ENCLOSURE

Compact design provides extra wiring room for easy, fast installation
Easy-to-read electrical ratings on rugged steel mounting straps ensure accurate identification
Highly visible “ON/OFF” markings on large, rugged toggles make the switch easy to operate and reduce the risk of errors
Cam and roll design provides dependable, trouble-free switch action
Distinct wire pockets and thick-wall arc barriers prevent strands from straying
Robust, single-piece, moveable and stationary contact arms with large silver-cadmium buttons limit heat build-up for excellent continuity and long life
Screw and clamp or box lug terminals to meet individual project requirements

Quantity 1EA

Specifications

Amps [Nom]=20.00 A; 30.00 A
Body Cover Material=Steel
Cable/Wire Size [Max]=10.000 AWG
Cable/Wire Size [Min]=14.000 AWG
Color=Gray
Height [Nom]=3 1/2 in
Length [Nom]=5 in
Voltage [Nom]=600.00 V; 250.00 V
Width [Nom]=3 in
Wt.=1.60 lb
