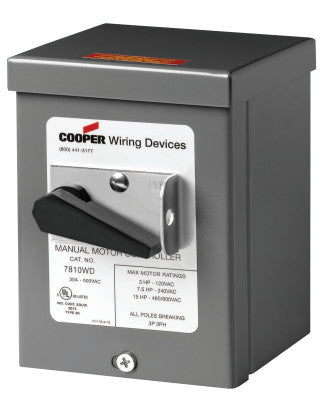

AH7810UD W/TYPE 3R ENCLOSURE GY

Compact design provides extra wiring room
High impact-resistant, glass-filled nylon construction
Easy-to-read electrical ratings on rugged steel mounting straps
Highly visible “ON/OFF” markings on large, rugged toggles
Distinct wire pockets and thick-wall arc barriers prevent strands from straying
Screw and clamp or box lug terminals to meet individual project requirements
Two sets of contacts per pole distribute load and make/break action for long, reliable duty

Quantity 1EA

Specifications

Amps [Nom]=30.00 A
Body Cover Material=Steel
Cable/Wire Size [Max]=10.000 AWG
Cable/Wire Size [Min]=14.000 AWG
Color=Gray
Height [Nom]=3 1/2 in
Length [Nom]=5 in
Voltage [Nom]=600.00 V
Width [Nom]=3 in
Wt.=1.60 lb
