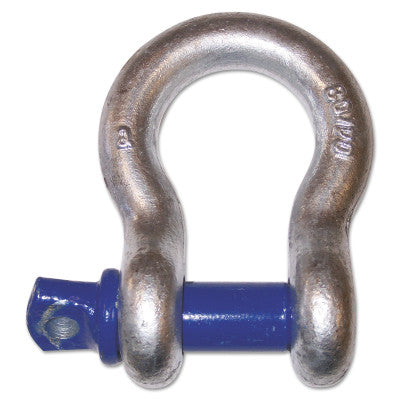

Screw Pin Anchor Shackles, 1 11/16 in Opening, 1 in Bail, 17,000 lb Load

Working load limit must not be exceeded
Embossed with load rating
Used as a secure connector allowing components to easily attach and detach as needed

Quantity 10EA/CTN

Specifications

Bail Size=1 in
Eye Outer Size=2.625 in
Finish=Galvanized
Inner Length [Nom]=2.312 in
Locking Type=Threaded Pin
Material=Forged Steel
Opening Size [Nom]=1 11/16 in
Pin Size [Nom]=1-1/8 in
Type=Screw Pin Shackle
Working Load Limit=17,000 lb
Wt.=5.07 lb
