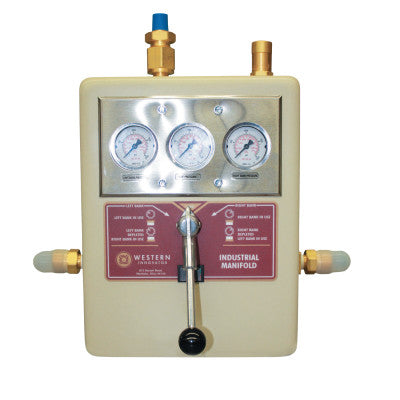

B1 Series Manifolds, Oxygen, Up to 1200 scfh, CGA-540 Male, 3000 psig

Semi-automatic
Industrial grade
For high pressure cylinders
Connects to remote alarms systems (up to 3 amps 30 VDC or 2 amps 250 VAC)

Quantity 1EA

Specifications

Body Material=Brass/Steel
Flow Range=Up to 1200 scfh
Gas Type=Oxygen
Height [Nom]=0 in
Inlet Connection=NPS (without cylinder fittings); CGA-540 male (with cylinder fittings)
Inlet Pressure [Max]=3000 psig
Length [Nom]=10 in
Outlet Pressure [Max]=125 psig
Width [Nom]=0 in
Wt.=35 lb
