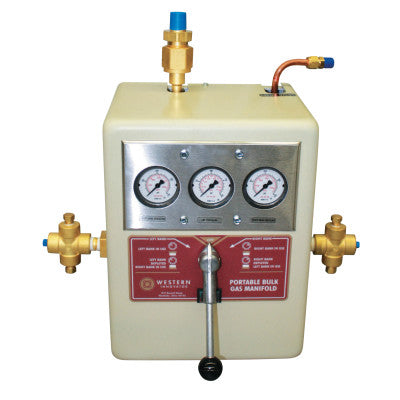

LC Series Manifolds, Oxygen, 750 scfh, CGA-540 Female, 350 psig

Semi-automatic
Industrial grade
For liquid dewars
Connects to remote alarms systems (up to 3 amps 30 VDC or 2 amps 250 VAC)

Quantity 1EA

Specifications

Body Material=Brass/Steel
Flow Range=750 scfh
Gas Type=Oxygen
Height [Nom]=0 in
Inlet Connection=1/4 inch female NPT (without cylinder fittings); CGA-540 female (with cylinder fittings)
Inlet Pressure [Max]=350 psig
Length [Nom]=10 in
Outlet Pressure [Max]=85 psig
Width [Nom]=0 in
Wt.=30 lb
