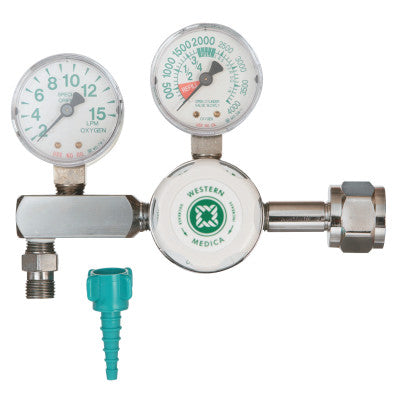

M1 Series Flow Gauge Regulators, Oxygen, 2-15 LPM, CGA540 Nut/Nipple, 3,000 psi

Chrome-plated brass body with all brass high-pressure chamber
Internal reseating relief valve protects against overpressurization
Standard DISS 1240 outlet connection and plastic swivel hose barb

Quantity 1EA

Specifications

Diaphragm Material=Neoprene
Filter Material=Sintered
Flow Range=2 - 15 LPM
Gas Type=Oxygen
Gauge Size=2 in
Inlet Connection=CGA-540 Nut and Nipple
Inlet Pressure [Max]=3,000 psi
Length [Nom]=2 in
Outlet Pressure [Max]=120 PSIG
Type=Single-Stage
Wt.=1 lb
