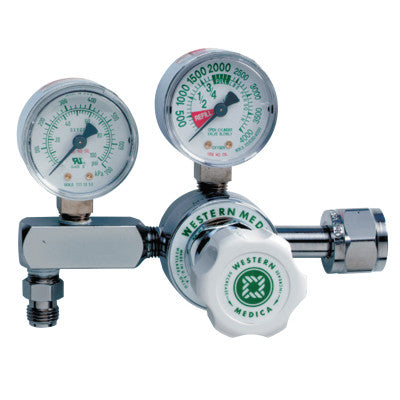

M1 Series Pressure Gauge Regulators, , CGA-540 Nut and Nipple, 3,000 psi inlet

Chrome-plated brass body with all brass high-pressure chamber
2000 SCFH air maximum rated flow at 2000 psi
Internal reseating relief valve protects against overpressurization
Dual scale pressure gauge: psi and kPa
DISS gas specific outlets

Quantity 1EA

Specifications

Diaphragm Material=Neoprene
Filter Material=Sintered
Gauge Size=2 in
Inlet Connection=CGA-540 Nut and Nipple
Inlet Pressure [Max]=3,000 psi
Outlet Pressure [Max]=100 psi
Wt.=2.78 lb
