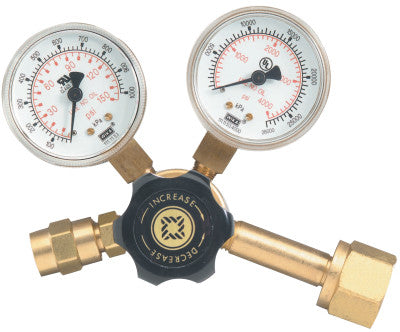

REB Series Light Duty Single Stage Regulators, Oxygen, CGA 540, 3,000 psi inlet

Neoprene diaphragm is sensitive yet durable to maintain consistent delivery pressure
Dual inlet filtering system extends regulator life
Dual scale gauges are easy to read
KEL-F seat assembly
For applications requiring a portable, lightweight, compact regulator such as in plumbing, and light-duty cutting and welding

Quantity 1EA

Specifications

Body Material=Machined Brass
Diaphragm Material=Neoprene
Flow Cap. [Max]=1,000 SCFH
Gas Type=Oxygen
Gauge Size=2 in
Height [Nom]=4 1/4 in
Inlet Connection=CGA 540
Inlet Pressure [Max]=3,000 psi
Length [Nom]=6 in
Outlet Connection=9/16 in - 18 RH(M)
Outlet Pressure [Max]=100 psi
Outlet Pressure [Min]=0 psi
Width [Nom]=3 3/4 in
Wt.=29 oz
