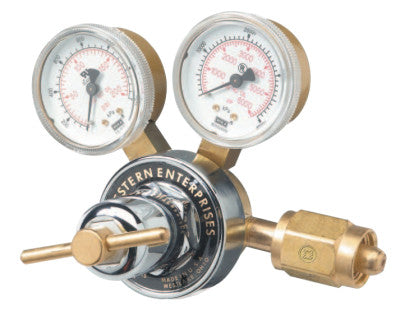

RHP High Inlet/Delivery Pressure Regulators, Compressed Air, CGA347, 6,000 psi

PCTFE seat assemblies withstand high service pressure
Dual inlet filters extends regulator service life
Dual Safety Relief Valves protects against over pressurization
Low friction, replaceable thrust bushing for easy adjustment

Quantity 1EA

Specifications

Body Material=Machined Brass
Depth [Nom]=7 in
Flow Cap. [Max]=3,200 SCFH
Gas Type=Compressed Air
Gauge Size=2 in
Height [Nom]=6 in
Inlet Connection=CGA 347
Inlet Pressure [Max]=6,000 psi
Length [Nom]=4 1/2 in
Outlet Connection=1/4 in. NPT(F)
Outlet Pressure [Max]=180 psi
Width [Nom]=7 in
Wt.=3 lb
