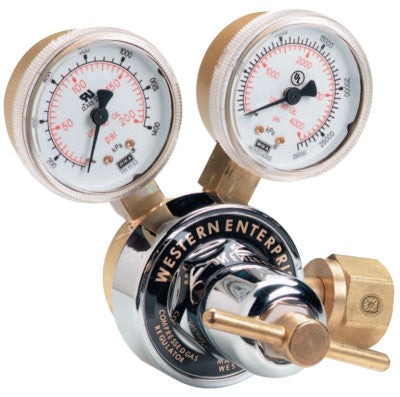

RS Series Medium Duty Single Stage Regulators, Acetylene, CGA 510, 400 psi inlet

450 PSIG models have KEL-F seat to accommodate high pressure applications
Dual inlet filter system extends regulator life
Hydrogen and methane models equipped with pipe away relief valves
Nickel chrome plated zinc bonnet

Quantity 1EA

Specifications

Body Material=Machined Brass
Diaphragm Material=Neoprene
Flow Cap. [Max]=420 SCFH
Gas Type=Acetylene
Gauge Size=2 in
Inlet Connection=CGA 510
Inlet Pressure [Max]=400 psi
Outlet Connection=9/16 in - 18 LH(M)
Outlet Pressure [Max]=15 psi
Type=Regulator
Wt.=3 lb
