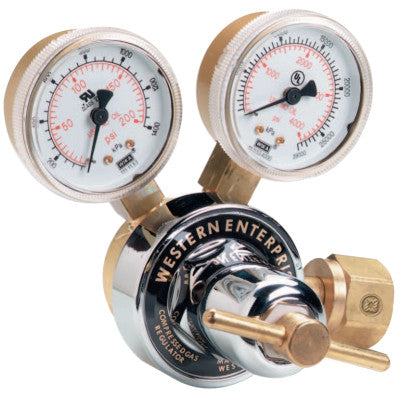

RS Medium Duty Single Stage Regulators, Inert Gas, CGA 580, 3,000 psi inlet

450 PSIG models have KEL-F seat to accommodate high pressure applications
Dual inlet filter system extends regulator life
Hydrogen and methane models equipped with pipe away relief valves
Nickel chrome plated zinc bonnet

Quantity 1EA

Specifications

Body Material=Machined Brass
Diaphragm Material=Neoprene
Flow Cap. [Max]=3,430 SCFH
Gas Type=Inert Gas
Gauge Size=2 in
Inlet Connection=CGA 580
Inlet Pressure [Max]=3,000 psi
Outlet Connection=9/16 in - 18 RH(M)
Outlet Pressure [Max]=80 psi
Type=Regulator
Wt.=3 lb
