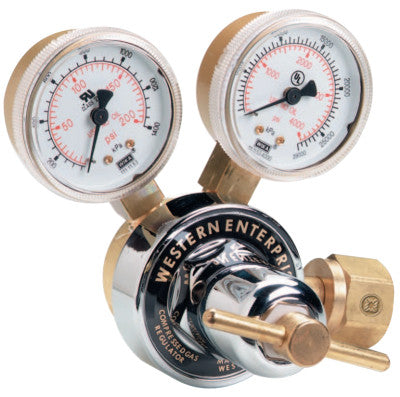

RS Medium Duty Single Stage Regulators, Inert Gas, 8,500 SCFH, CGA580, 3,000 psi

450 PSIG models have KEL-F seat to accommodate high pressure applications
Dual inlet filter system extends regulator life
Hydrogen and methane models equipped with pipe away relief valves
Nickel chrome plated zinc bonnet

Quantity 1EA

Specifications

Body Material=Machined Brass
Diaphragm Material=Neoprene
Flow Cap. [Max]=8,500 SCFH
Flow Range=8,500 SCFH
Gas Type=Inert Gas
Gauge Size=2 in
Inlet Connection=CGA 580
Inlet Pressure [Max]=3,000 psi
Outlet Connection=1/4 in. NPT(F)
Outlet Pressure [Max]=450 psi
Type=Regulator
Wt.=3 lb
