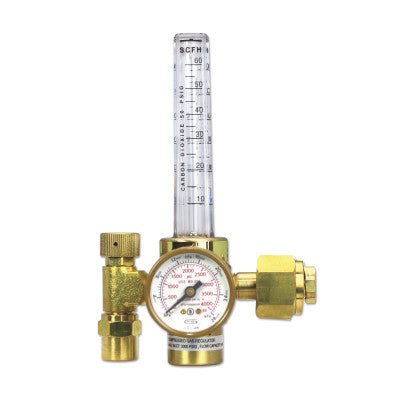

Flowmeters/Regulators, Carbon Dioxide, CGA 320, 4,000 psi inlet

Underwriters Laboratories Inc. listed
Single stage construction
Sintered bronze inlet filter
Chrome plated housing cap
Easily read high-pressure gauge
Internal safety pressure relief design
Calibrated for argon, helium and carbon dioxide gases
Polycarbonate flow tube and outer cover are impact resistant for maximum durability and service life
0-70 SCFH Argon flow, 0-150 SCFH Helium, 0-60 SCFH Carbon Dioxide flow
Flowmeter is back pressure compensated to ensure accurate reading when line restrictions are present

Quantity 1EA

Specifications

Applications=MIG/TIG
Body Material=Brass
Flow Cap. [Max]=60 SCFH
Gas Type=Carbon Dioxide
Gauge Size=1 1/2 in
Inlet Connection=CGA 320
Inlet Pressure [Max]=4,000 psi
Outlet Connection=5/8 in - 18 RH(F)
Outlet Pressure [Max]=50 psi
Type=Medium Duty Regulator
Wt.=1.1 lb
