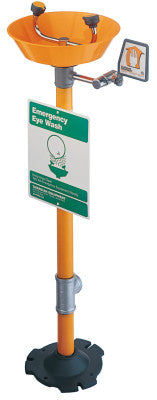

Pedestal Mounted Eye Washes, 11 1/2 in, Plastic

Free standing, pedestal mounted eye wash, water flow is activated by either flag handle or foot treadle
Pipe and Fittings: Schedule 40 galvanized steel, furnished with orange polyethylene covers for vertical piping for high visibility and corrosion resistance
Two GS-Plus spray heads deliver flood of water for rinsing eyes, each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow

Quantity 1EA

Specifications

Bowl Diam=11 1/2 in
Bowl Height=36 in
Bowl Material=Plastic
Flow [Nom]=1.8 GPM
Height [Nom]=12.4 in
Inlet Size=1/2 in NPT(F)
Length [Nom]=22.4 in
Outlet Size=1 1/4 in NPT(F)
Type=Pedestal-Mounted
Width [Nom]=15 1/2 in
Working Pressure [Max]=100 psi
Working Pressure [Nom]=20 psi- 100 psi
Wt.=15.1 lb
