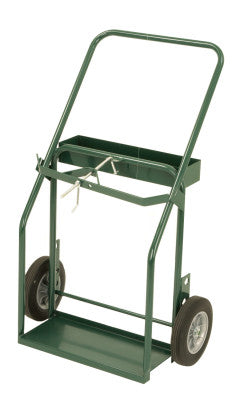

Series 400 Truck, Holds 9.25"-10.5" dia., 10" Solid Rubber Wheels, w/Belly Band
Series 400 Truck, Holds 9.25"-10.5" dia., 10" Solid Rubber Wheels, w/Belly Band
Regular price
$470.07 USD
Regular price
Sale price
$470.07 USD
Unit price
/
per
SKU:338-410B-86
Slightly narrower than the other continuous handle models
They will properly hold in place one 330 cu ft standard large oxygen cylinder and one medium size 10-1/2" maximum diameter acetylene cylinder
The frame will accommodate cylinders up to 19" combined diameter
Strong all welded design makes them ideal for rough use
Handles medium and large cylinders
Quantity 1EA
Specifications
Acetylene Cylinder (Max)=10 1/2 in
Bracket Chain Height=27 in
Color=Harper Green
Handle Type=Continuous
Height [Nom]=43 1/2 in
Oxygen Cylinder (Max)=9 1/4 in
Platform Depth=9 in
Platform Width=21 in
Wheel Diam [Nom]=10 in
Wheel Type=Solid Rubber, B.B.
Wheel Width [Nom]=2 in
Width [Nom]=28 in
