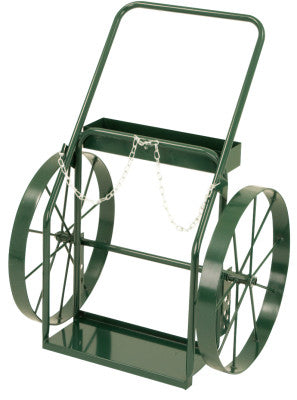

Series 400 Trucks, Holds 9 1/4 in-10 1/2 in Cylinders, 24 in Steel, B.B. Wheels

Slightly narrower than the other continuous handle models
They will properly hold in place one 330 cu ft standard large oxygen cylinder and one medium size 10-1/2" maximum diameter acetylene cylinder
The frame will accommodate cylinders up to 19" combined diameter
Strong all welded design makes them ideal for rough use
Handles medium and large cylinders

Quantity 1EA

Specifications

Acetylene Cylinder (Max)=10 1/2 in
Bracket Chain Height=27 in
Color=Harper Green
Handle Type=Continuous
Height [Nom]=43 1/2 in
Oxygen Cylinder (Max)=9 1/4 in
Platform Depth=9 in
Platform Width=21 in
Wheel Diam [Nom]=24 in
Wheel Type=Steel, B.B.
Wheel Width [Nom]=2 in
Width [Nom]=28 1/2 in
Wt.=54 1/2 lb
