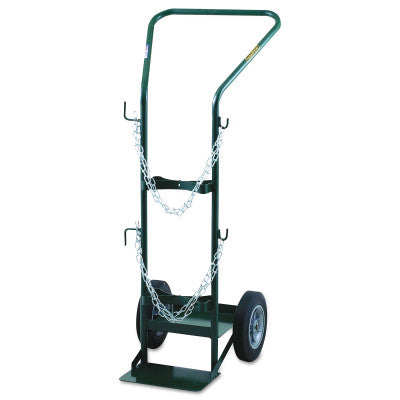

Series 830 Truck, For 10.5"-12.5" Cylinders, 10 x 2.5" Solid Rubber, B.B. Wheels

Series 830 is a new design to accommodate a large oxygen cylinder in the back, and a large acetylene cylinder in the front
This narrow design allows for better maneuverability in narrow aisles where a normal side-by-side cylinder truck cannot go
SO-2 bolt on tool box is available as an option

Quantity 1EA

Specifications

Acetylene Cylinder (Max)=12 1/2 in
Base Plate=8 x 12 in, in front; 11 x 11 in, in back
Bracket Chain Height=19 in; 34 in
Color=Harper Green
Handle Type=Continuous
Height [Nom]=49 in
Oxygen Cylinder (Max)=10 1/2 in
Wheel Diam [Nom]=10 in
Wheel Type=Solid Rubber, B.B.
Wheel Width [Nom]=2 1/2 in
Width [Nom]=20 in
Wt.=35 1/4 lb
