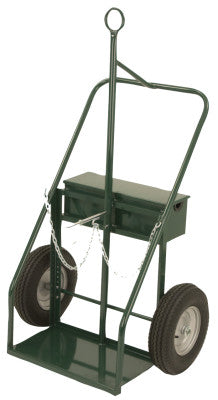

Series 900-950 Trucks, Holds 9.25"-13.5" Cylinders, Pneumatic, B.B. Wheels
Series 900-950 Trucks, Holds 9.25"-13.5" Cylinders, Pneumatic, B.B. Wheels
SKU:338-916-72
Series 900 Harper Trucks are identical to Series 940 except they are equipped with a center tow ring for slow speed towing for on job site transportation
Comes with a lock top tool box
Series 950 Extra Heavy Duty Cylinder Truck is the only model designed to be lifted and placed in a construction type application
Containment rings and center "V" on the base plate, coupled with the "Sur-Lok" Cylinder holding device securely carries cylinders on the ground or during hoisting into place
Handle large cylinders
Quantity 1EA
Specifications
Acetylene Cylinder (Max)=13 1/2 in
Bracket Chain Height=24 in
Color=Harper Green
Handle Type=Continuous
Height [Nom]=60 in
Oxygen Cylinder (Max)=9 1/4 in
Platform Depth=13 in
Platform Width=24 in
Wheel Diam [Nom]=16 in
Wheel Type=Pneumatic, B.B.
Wheel Width [Nom]=4 in
Width [Nom]=35 in
Wt.=82 lb
