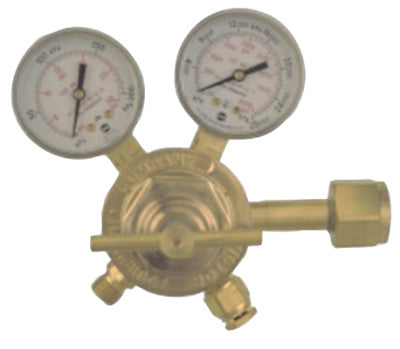

SR 250 Series Single Stage Med Duty Regulators, Inert Gas, CGA 540, 3,000 psig

Compact single stage construction
Stem type seat mechanism
Delrin cap bushing for smooth adjustments
External self reseating relief valve not designed to protect downstream apparatus

Quantity 1EA

Specifications

Body Material=Forged Brass
Depth [Nom]=4 1/4 in
Diaphragm Material=Fabric-Reinforced Neoprene
Diaphragm Size=1 3/4 in
Filter Material=Bronze; Sintered
Gas Type=Air; Oxygen; Inert Gas
Gauge Size=2 in
Height [Nom]=5 1/8 in
Inlet Connection=CGA 540
Inlet Pressure [Max]=3,000 psig
Outlet Connection=9/16 in - 18 (M)
Outlet Pressure [Max]=80 psig
Outlet Pressure [Min]=4.0 psig
Width [Nom]=6 3/8 in
Wt.=2 15/16 lb
