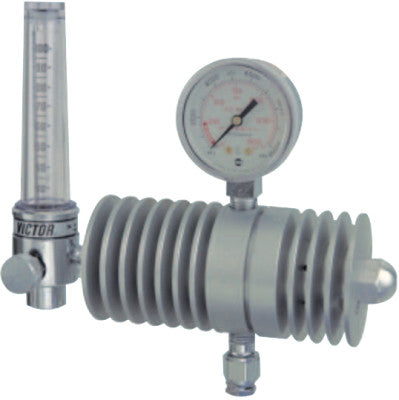

High Flow CO2 Flowmeters/Flowgauges, CO2, 100 psig, CGA 320, 1,500 psig inlet

Designed for CO2 application (non-siphoned tube cylinders) High flow CO2 applications (SR 310 100 PSIG) (SR 311/312 100 SCFH) with adequate supply or source
Designed for core wire applications
Machined body and housing cap
Stem type seat mechanism
Self reseating relief valve (not designed to protect downstream apparatus)

Quantity 1EA

Specifications

Body Material=Aluminum
Depth [Nom]=2 1/2 in
Diaphragm Material=Fabric-Reinforced Neoprene
Filter Material=Bronze; Sintered
Flow Cap. [Max]=100 SCFH
Flow Cap. [Min]=25 SCFH
Flow Range=25 - 100 psig
Gas Type=Carbon Dioxide
Gauge Size=2 in
Height [Nom]=7 1/4 in
Inlet Connection=CGA 320
Inlet Pressure [Max]=1,500 psig
Length [Nom]=8.38 in
Outlet Connection=5/8 in - 18 RH(F)
Outlet Pressure [Max]=100 psig
Width [Nom]=8 3/8 in
Wt.=2 15/16 lb
