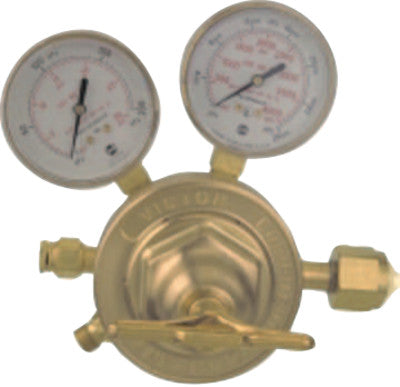

SR 450 Single Stage Heavy Duty Regulators, Inert Gas, CGA 580, 3,000 psig inlet

Medium to high gas service capacity
Single stage design
Stem type seat mechanism
Delrin cap bushing for smooth adjustments
External self reseating relief valve not designed to protect downstream apparatus

Quantity 1EA

Specifications

Body Material=Forged Brass
Depth [Nom]=5 1/8 in
Diaphragm Material=Stainless Steel
Diaphragm Size=3 1/4 in
Filter Material=Bronze; Sintered
Flow Range=5 - 125 psig
Gas Type=Air; Oxygen; Inert Gas
Gauge Size=2 1/2 in
Height [Nom]=7 in
Inlet Connection=CGA 580
Inlet Pressure [Max]=3,000 psig
Length [Nom]=7 in
Outlet Connection=9/16 in - 18 RH(F)
Outlet Pressure [Max]=125 psig
Outlet Pressure [Min]=5 psig
Width [Nom]=7 1/4 in
Wt.=5 1/8 lb
