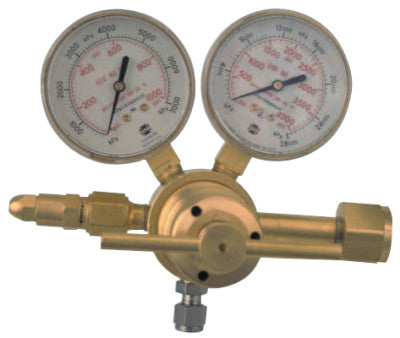

Professional High Pressure SR 4, Carbon Dioxide, CGA 320, 3,000 PSIG Inlet

Heavy-duty, high pressure piston regulator
Ideally suited for pressure vessel and dead-end testing

Quantity 1EA

Specifications

Applications=Automotive; Construction; Demolition; Medical; Metal Art; Mining; Ranching; Scrap; Shipbuilding; Testing
Body Material=Brass
Case Material=Brass
Connection Type=CGA 032 5/8 in - 18 UNF 3000 (Outlet); CGA 320 (Inlet)
Depth [Nom]=6 1/4 in
Filter Material=Bronze
Flow Range=50-750 PSIG
Gas Type=Carbon Dioxide
Gauge Size=2 1/2 in
Height [Nom]=6 1/2 in
Inlet Connection=CGA 320
Inlet Pressure [Max]=3000 psig
Outlet Connection=CGA 032 5/8 in - 18 UNF 3000
Outlet Pressure [Max]=750 psig
Outlet Pressure [Min]=50 psig
Outlet Size=5/8 in
Series=SR4
Type=SR 4 High Pressure
Used With=Gas Cutting Equipment
Width [Nom]=6 in
Wt.=4 lb
