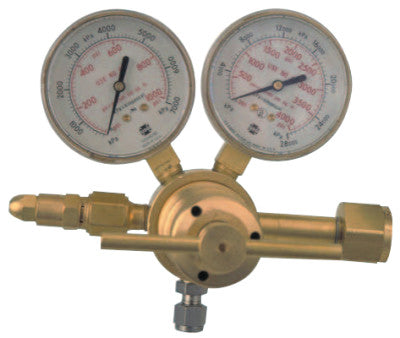

Professional High Pressure SR 4, 50-750 PSIG, Air, CGA 347

Heavy-duty, high pressure piston regulator
Ideally suited for pressure vessel and dead-end testing

Quantity 1EA

Specifications

Applications=Automotive; Construction; Demolition; Medical; Metal Art; Mining; Ranching; Scrap; Shipbuilding; Testing
Body Material=Brass
Case Material=Brass
Connection Type=1/4 in Swaglok (Outlet); CGA 347 (Inlet)
Depth [Nom]=6 1/4 in
Filter Material=Bronze
Flow Range=50-750 PSIG
Gas Type=Air
Gauge Size=2 1/2 in
Height [Nom]=6 1/2 in
Inlet Connection=CGA 347
Inlet Pressure [Max]=5500 psig
Outlet Connection=1/4 in Swaglok
Outlet Pressure [Max]=750 psig
Outlet Pressure [Min]=50 psig
Outlet Size=1/4 in
Series=SR4
Type=SR 4 High Pressure
Used With=Gas Cutting Equipment
Width [Nom]=6 in
Wt.=4 lb
