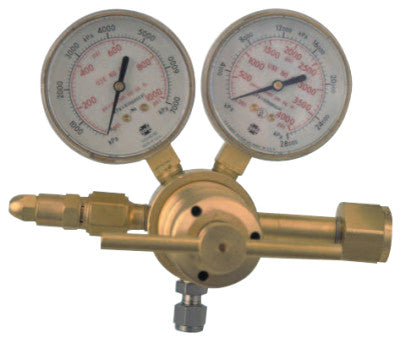

Professional High Pressure SR 4, High Capacity, F (750 PSIG), 1/4 in NPT (F)

Heavy-duty, high pressure piston regulator
Ideally suited for pressure vessel and dead-end testing

Quantity 1EA

Specifications

Applications=Testing
Body Material=Brass
Case Material=Brass
Depth [Nom]=6 1/4 in
Filter Material=Bronze
Flow Range=50-750 PSIG
Gauge Size=2 1/2 in
Height [Nom]=6 1/2 in
Inlet Connection=1/4 in NPT (F)
Inlet Size=1/4 in
Outlet Connection=1/4 in Swaglok
Outlet Pressure [Max]=750 psig
Outlet Pressure [Min]=50 psig
Outlet Size=1/4 in
Series=SR4
Type=High Pressure Regulator
Used With=Gas Cutting Equipment
Width [Nom]=6 in
Wt.=4 lb
