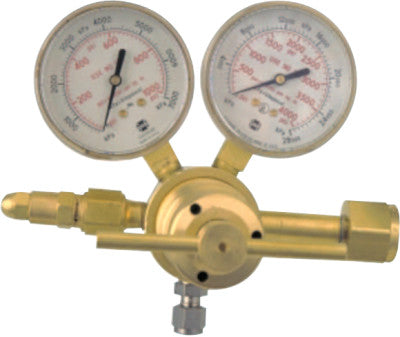

High Pressure Single Stage Piston Regulators, Inert Gas, CGA 580, 3,000 psig

High pressure
Dead-end testing
May be panel mounted
Single stage design
Piston type actuation
All SR 4 series regulators have a swaged lock type stainless steel outlet fitting
Cartridge type seat assembly with PCTFE seat
Delrin cap bushing for smooth adjustments
External adjustable relief valves on F and G range models
Hydrogen models have ventable relief valves

Quantity 1EA

Specifications

Body Material=Machined Brass
Depth [Nom]=6 1/4 in
Filter Material=Bronze; Sintered
Flow Range=200 - 3000 psig
Gas Type=Inert Gas
Height [Nom]=6 1/2 in
Inlet Connection=CGA 580
Inlet Pressure [Max]=3,000 psig
Length [Nom]=6 in
Outlet Pressure [Max]=3,000 psig
Outlet Pressure [Min]=200 psig
Outlet Size=1/4 in
Outlet Type=Swagelok
Width [Nom]=6 in
Wt.=4 lb
