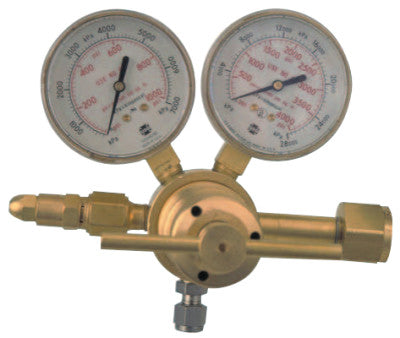

Professional High Pressure SR 4, 996, 1 - 11 1/2 NPS (F), 3,000 PSIG

Heavy-duty, high pressure piston regulator
Ideally suited for pressure vessel and dead-end testing

Quantity 1EA

Specifications

Applications=Automotive; Construction; Demolition; Medical; Metal Art; Mining; Ranching; Scrap; Shipbuilding; Testing
Body Material=Brass
Case Material=Brass
Depth [Nom]=6 1/4 in
Filter Material=Bronze
Flow Range=200-3000 PSIG
Gas Type=Air; Hydrogen; Inert Gas; Oxygen
Gauge Size=2 1/4 in
Height [Nom]=6 1/2 in
Inlet Connection=1 in - 11.5 NPS (M)
Inlet Size=1 in
Outlet Connection=1 in - 11.5 NPS (F)
Outlet Pressure [Max]=3000 psig
Outlet Pressure [Min]=200 psig
Outlet Size=1 in
Series=SR4
Type=High Pressure Regulator
Used With=Gas Cutting Equipment
Width [Nom]=6 in
Wt.=4 lb
