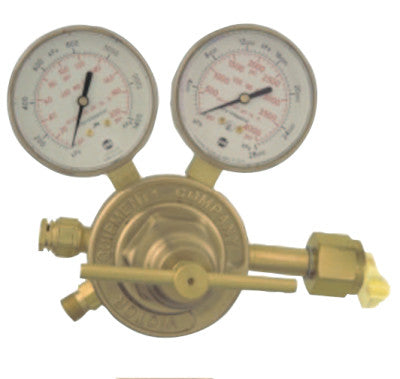

SR 350 Single Stage Heavy/Medium Duty Regulators, Acetylene, CGA 510, 3,000 psig

Single stage design
Stem type seat mechanism
Delrin cap bushing for smooth adjustments
External self reseating relief valve not designed to protect downstream apparatus

Quantity 1EA

Specifications

Body Material=Forged Brass
Diaphragm Material=Fabric-Reinforced Neoprene
Diaphragm Size=2 3/4 in
Filter Material=Bronze; Sintered
Gas Type=Acetylene
Gauge Size=2 1/2 in
Inlet Connection=CGA 510
Inlet Pressure [Max]=3,000 psig
Outlet Connection=9/16 in - 18
Outlet Pressure [Max]=15 psig
Outlet Pressure [Min]=2 psig
Wt.=3.8 lb
