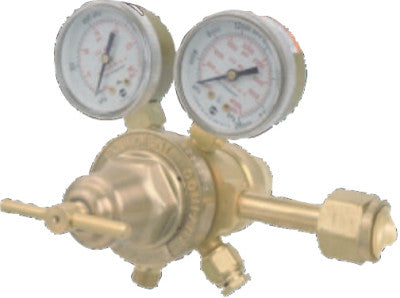

VTS250 2-Stage Medium Duty Regulators, Air/Oxygen/Inert Gas, CGA580, 3,000 psig

Forged brass housing cap
Stem type seat mechanism
Delrin cap bushing for smooth adjustments

Quantity 1EA

Specifications

Body Material=Forged Brass
Depth [Nom]=6 1/8 in
Diaphragm Material=Fabric-Reinforced Neoprene
Diaphragm Size=1 1/8 in; 1 3/4 in
Filter Material=Bronze; Sintered
Gas Type=Air; Oxygen; Inert Gas
Gauge Size=2 in
Height [Nom]=5 5/8 in
Inlet Connection=CGA 580
Inlet Pressure [Max]=3,000 psig
Outlet Connection=5/8 in - 18 RH(F)
Outlet Pressure [Max]=15 psig
Outlet Pressure [Min]=2 psig
Width [Nom]=6 1/2 in
Wt.=4.1 lb
