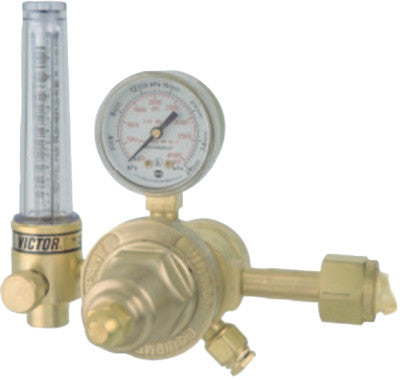

Two Stage Regulator/Flowmeter, Argon/CO2; Helium, CGA 580; CGA 320, 3,000 psig

Accurate regulator for gas flow
MIG/TIG applications
Stem type seat mechanism
External self reseating relief valve (Not designed to protect downstream apparatus)

Quantity 1EA

Specifications

Body Material=Forged Brass
Depth [Nom]=6 1/2 in
Diaphragm Material=Fabric-Reinforced Neoprene
Filter Material=Sintered; Bronze
Flow Range=10 - 60 Argon; 4 - 18 / 10 - 50 Argon/CO2; 15 - 65 / 40 - 200 Helium
Gas Type=Argon; Argon/CO2; Helium
Gauge Size=2 in
Height [Nom]=5 1/2 in
Inlet Connection=CGA 580; CGA 320
Inlet Pressure [Max]=3,000 psig
Outlet Connection=5/8 in - 18 RH(F)
Width [Nom]=7 in
