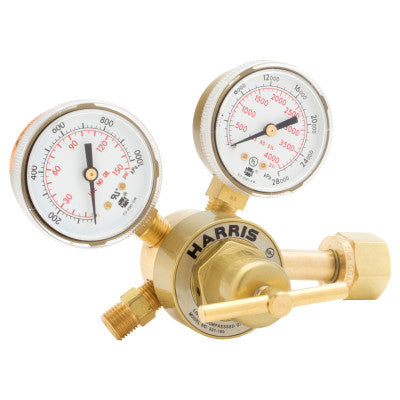

301 Single Stage Regulators, Carbon Dioxide, 0 - 100 psig, 3,000 psig

This single-stage regulator is designed to be compact, lightweight and rugged
It provides accurate pressure regulation to 100 PSIG

Quantity 1EA

Specifications

Body Material=Steel
Capacities=Light Duty
Case Material=Steel
Connection Type=9/16 in - 18 RH (Outlet); CGA 320 (Inlet)
Flow Range=0 - 100 psig
Gas Type=Carbon Dioxide
Gauge Size=2 in
Height [Nom]=4.62 in
Inlet Connection=CGA-320
Inlet Pressure [Max]=3,000 psig
Inlet Type=CGA-320
Length [Nom]=4.56 in
Outlet Connection=9/16 in - 18 RH
Outlet Pressure [Max]=100 psig
Outlet Type=Right Hand Thread
Series=301
Type=Single Stage Regulator
Width [Nom]=6 in
Wt.=2.2 lb
