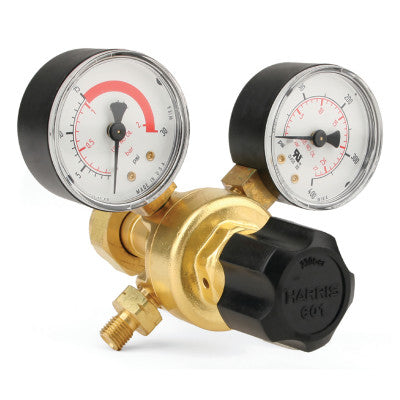

601 Single Stage Regulators, Oxygen, 0 - 80 psig, 3,000 psig

This single-stage regulator is designed to be compact and economical, but with features typically available in more expensive regulators
It is used where weight, cost and size are factors

Quantity 1EA

Specifications

Body Material=ABS
Capacities=Light Duty
Case Material=ABS
Connection Type=9/16 in - 18 RH (Outlet); CGA 540 (Inlet)
Flow Range=0 - 80 psig
Gas Type=Oxygen
Gauge Size=50 mm
Height [Nom]=4.88 in
Inlet Connection=CGA-540
Inlet Pressure [Max]=3,000 psig
Inlet Type=CGA-540
Length [Nom]=5.41 in
Outlet Connection=9/16 in - 18 RH
Outlet Pressure [Max]=80 psig
Outlet Type=Right Hand Thread
Series=601
Type=Single Stage Regulator
Width [Nom]=4.16 in
Wt.=1.39 lb
