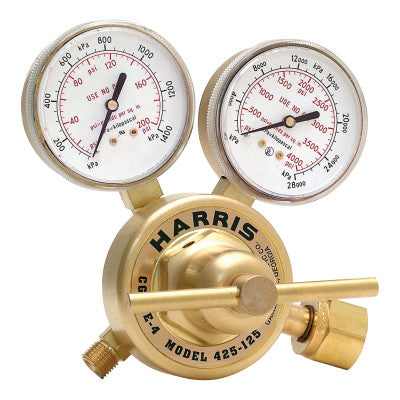

425 Single Stage Industrial Regulators, Oxygen, 0 - 125 psig, 3,000 psig

Model 425 is a premium, single-stage, industrial regulator that is an ideal choice for most industrial applications
This regulator incorporates a number of Harris features designed to make it a rugged, long-lasting performer, including an exclusive tamper-proof, self-reseating internal HP safety valve and a neoprene diaphragm

Quantity 1EA

Specifications

Applications=Industrial and General Fabrication
Body Material=Brass
Capacities=Heavy Duty
Case Material=Brass
Connection Type=9/16 in - 18 RH (Outlet); CGA 540 (Inlet)
Flow Range=0 - 125 psig
Gas Type=Oxygen
Gauge Size=2 1/2 in
Height [Nom]=6 1/2 in
Inlet Connection=CGA-540
Inlet Pressure [Max]=3,000 psig
Inlet Type=CGA-540
Length [Nom]=4 1/2 in
Outlet Connection=9/16 in - 18 RH
Outlet Pressure [Max]=125 psig
Outlet Type=Right Hand Thread
Series=425
Type=Single Stage Regulator
Width [Nom]=6 3/4 in
Wt.=3.7 lb
