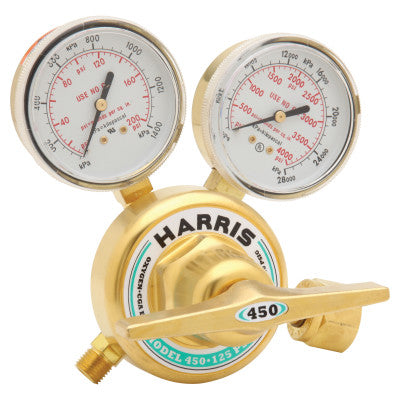

450 Industrial Duty Regulators, Acetylene, 0 - 15 psig, 500 psig

The model 450 is an economically priced industrial duty regulator with premium features found in high priced regulators
The 450 has a stainless steel diaphragm and a Harris exclusive internal tamper-proof self-reseating safety

Quantity 1EA

Specifications

Applications=Industrial and General Fabrication
Body Material=Brass
Capacities=Heavy Duty
Case Material=Brass
Connection Type=9/16 in - 18 LH (Outlet); CGA 300 (Inlet)
Diaphragm Material=Stainless Steel
Flow Range=0 - 15 psig
Gas Type=Acetylene
Gauge Size=2 1/2 in
Height [Nom]=6.62 in
Inlet Connection=CGA-300
Inlet Pressure [Max]=500 psig
Inlet Type=CGA-300
Length [Nom]=4 3/4 in
Outlet Connection=9/16 in - 18 LH
Outlet Pressure [Max]=15 psig
Outlet Type=Left Hand Thread
Series=450
Type=Single Stage Regulator
Width [Nom]=7.28 in
Wt.=4.6 lb
