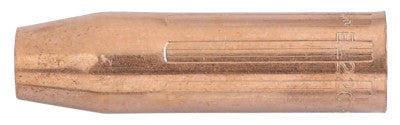

Mig Nozzles, 1/2" Tip Recess Fine Thread, 5/8 in

Used in light to medium duty welding application up to 250 amperes
Nozzle housing is cut and Formed from 122 DHP copper alloy tubing
Nozzle insert is machined from a solid brass allow and machining the internal threads to match the gas diffuser
Nozzle insulator is made from G7 silicone material, providing the electrical insulation needed from the gas diffuser
Part No. rolled stamped on the outside surface for easy identification
3-piece design does not require an additional insulator
Threads onto a standard EL gas diffuser

Quantity 2EA/PKG

Specifications

Bore Size=5/8 in
Nozzle Style=1/2" Tip Recess Fine Thread
Wt.=0.17 lb
