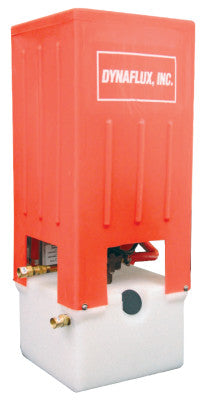

DY VH1000V 115V W/VANE PUMP

Rotary vane pump
Operates in both vertical and horizontal position
Factory set at 50 psi adjustable to 80 psi
5/8 LH Std. Inert Gas fittings - 1/4 FPT
8 foot power cord
Visible water level through tank
Thermal Overload
The extended life pump features a direct drive power system reducing maintenance and increasing performance

Quantity 1EA

Specifications

Capacity Vol. [Nom]=2 gal
Frequency [Nom]=50.0 Hz; 60.0 Hz
Height [Nom]=26 in
Length [Nom]=9 in
Material=Plastic
Phase=Single
Used With=MIG or TIG up to 500 Amps; Plasma Welders/Cutters up to 150 Amps; Resistance Welders up to 60 KVa
Voltage [Nom]=115.00 VAC
Width [Nom]=9 in
Working Cap. [Nom]=12,000 Btu
Wt.=31 lb
