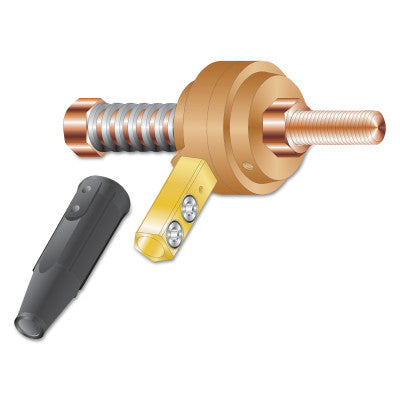

Model "C" Rotary Ground Clamps, 500 A, 3/0 - 4/0

Clamp bolts the stationary contact plate directly to the work
Movable contact plate revolves like a "ferris wheel action" and the spring keeps tension on the two faces
Current flow is between machined faces
Cables will not bind
Can be installed on the end for rotary work

Quantity 1EA

Specifications

Amps [Nom]=500 A
Cable Cap. 2=3/0 - 4/0
Connection Type=Double Oval-Point Screw
Wt.=4 lb
