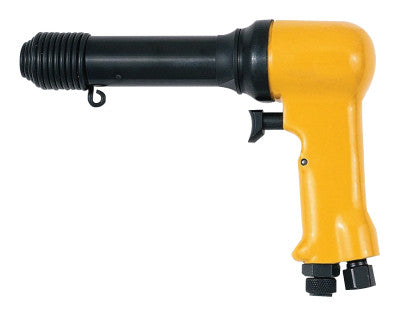

Air Hammers, Super Duty, 4 in Stroke L, 1,725 blows/min

Accurate and easily controlled tease throttle
Standard beehive retainer - allows use of a wide variety of accessories
Model 772 - Unitized "easy-out" throttle valve assembly
Furnished with two retainers for use with a wide variety of accessories

Quantity 1EA

Specifications

Air Consumption @ Load=11 CFM
Air Consumption [Nom]=3 CFM
Bore Diam [Nom]=9/16 in
Cycle Rate [Max]=1,725 blows/min
Cycle Rate [Nom]=1,725 blows/min
Hose Size [Min]=5/16 in
Inlet Size=1/4 in NPT(F)
Pressure [Nom]=90 psi
Retainer Type=Beehive
Shank Diam [Nom]=0.401 in
Stroke Length [Nom]=4 in
Type=Super Duty
Wt.=6.8 lb
