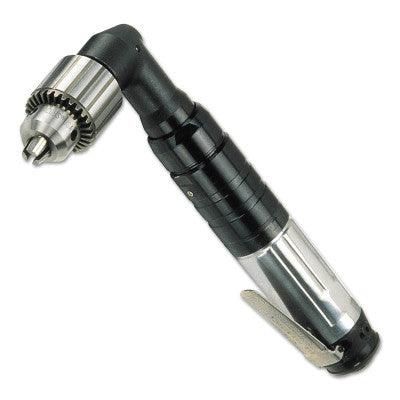

DRILL

Maximum TIR runout of .005" ensures precision holes for critical applications
Infinitely variable speed allows slow speed starting and high speed drilling
Angle head may be rotated 360 degrees to allow ideal orientation with the throttle
Ergonomically designed housing provides a secure surface for operator grip
Modular design allows maximum parts interchangeability and easy, low cost maintenance

Quantity 1EA

Specifications

Air Consumption [Nom]=26 CFM
Center to Side Distance=11/16 in
Chuck Size=1/2 in
Chuck Type=Keyed
Control Type=Lever Throttle
Free Speed [Nom]=600 rpm
Handle Type=Inline
Hose Size [Nom]=1/4 in
Inlet Pressure [Nom]=90 psi
Inlet Size=1/4 in (NPT)
Spindle Thread=3/8 in - 24
Torque [Max]=255 in lb
Type=Right Angle Drill
Wt.=5.59 lb
