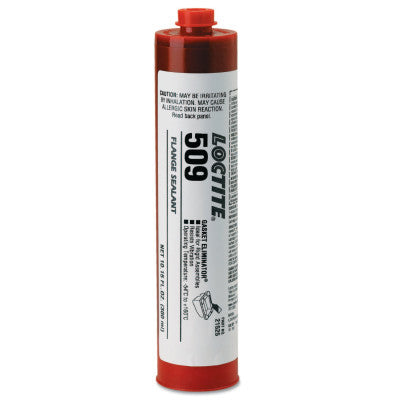

Top Pick Loctite 509 Gasket Eliminator Flange Sealants, 300 mL Cartridge, Blue

Flexible sealant withstands minor flange movement caused by vibrations
It will not run when applied to vertical surfaces
Fluorescent blue properties allow easy visual inspection during assembly
Flexible at temperatures up to 300 degrees F (149 degrees C)
Applications include gearbox, engine casings

Quantity 1EA

Specifications

Adhesive Tensile Shear=1,305 psi
Applications=Sealing; Gasketing
Capacity Vol. [Nom]=300 mL
Chemical Compound=Methacrylate Ester
Color=Blue
Curing Method=Anaerobic
Fix Cure Time @ Temp.=24 h @ 72 F
Full Cure Time @ Temp.=6 h @ 75 ÂF
Gap Fill [Nom]=0.01 in
Height [Nom]=9 3/16 in
Packing Type=Cartridge
Physical Form=Paste

Quantity=10 per case
Resistance=Migration of Liquid
Specific Gravity [Nom]=1.12
Temp. Range [Max]=300.0 F
Temp. Range [Min]=-65.0 F
VOC=0.04 %; 0.37 g/l
Width [Nom]=4 3/16 in
Wt.=0.87 lb
