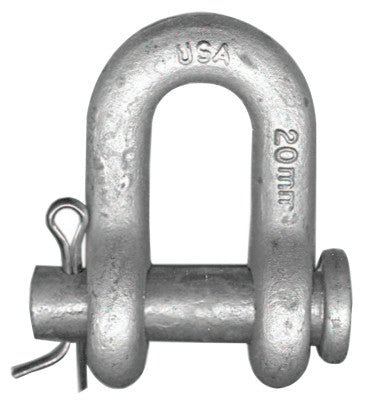

Round Pin Chain Shackles, 5/8 in Bail Size, 4.5 Tons, Secured Pin Shackle

Shackle bodies and pins are forged from alloy steel, heat treated and tempered to give greater strength and abrasion resistance
All shackles are marked with size (inches and millimeters) and working load limit in tons
Ultimate strength equals 5 times working load limit. Proof load equals 2.2 times working load limit
All bolt, nut & cotter shackles have thread protected ends
When ordering, specify galvanized (G) or painted (P)
Painted shackles are orange
Ton = 2,000 lbs
Standard industry tolerances apply

Quantity 1EA

Specifications

Bail Size=5/8 in
Finish=Galvanized Zinc
Locking Type=Cotter Pin
Material=Carbon Steel
Type=Secured Pin Shackle
Working Load Limit=9,000 lb
Wt.=1.3 lb
