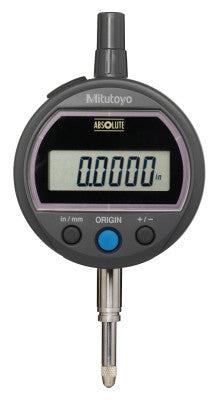

Digital Indicators ID-S Solar, 0.5 in; Lug Back

Employing the ABSOLUTE linear encoder, the Signal ID-S always displays the spindle "Absolute Position" from the origin at power-on
Unlimited response speed eliminates over-speed errors

Quantity 1EA

Specifications

Display Type=LCD
Graduation(s)=.0005 in; .010 mm
Height [Nom]=2.83 in
Length [Nom]=7.44 in
Measuring Force [Max]=1.500 N
Measuring System=English; Metric
Mounting=Lug Back; Stem
Output=SPC
Range [Max]=- 0.5 in; 12.7 mm
Resolution (Length)=0.0005 in; 0.01 mm
Stem Diam=8 mm
Thread - TPI or Pitch=M2.5 x 0.45
Tip Diam [Nom]=3 mm
Type=Solar Digimatic Indicator
Width [Nom]=4.15 in
Wt.=0.61 lb
