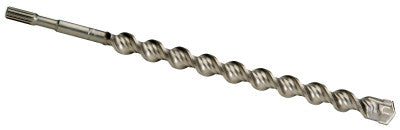

Spline Standard Tip Drill Bits, 1 1/4 in x 18 in x 23 in

Fits all spline rotary hammers
Patented flute geometry removes dust from the hole quicker for fast drilling and long life
Shot-peened, double-tempered finish reduces breakage
Copper braze material gives high heat resistance for reduced tip loss
Chrome vanadium shaft through-hardened to 50-53HrC

Quantity 1BIT

Specifications

Cutting Diam [Nom]=1 1/4 in
Flute Length=18 in
Height [Nom]=1 1/4 in
Length [Nom]=26 in
Overall Length [Nom]=23 in
Type=Spline Drill Bit
Width [Nom]=1 1/4 in
Wt.=1.91 lb
