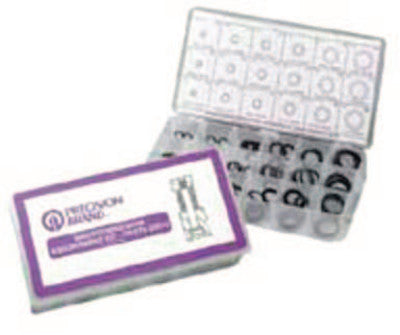

Lengthening & Shortening Shims, 0.00075", Steel 1075, 0.015" x 3/8" Screw Size

Lengthening shims fit over the stripper screw threads and under the shoulder which, in effect, lengthens the stripper screw length
Shortening shims are precision die cut to fit perfectly with close tolerances around the shoulder screw shank to fit under the screw head

Quantity 50EA/PKG

Specifications

Bolt/Screw Size [Nom]=3/8 in
Hardness [Max]=47 Rc
Hardness [Min]=44 Rc
Inner Diam=0.289 in
Material=Steel 1075
Outside Diam [Nom]=0.371 in
Thickness Tolerance (+) [Max]=0.00075 in
Thickness Tolerance (-) [Min]=0.00075 in
Thickness [Nom]=0.015 in
Type=Lengthening Shims
Wt.=0.01 lb
