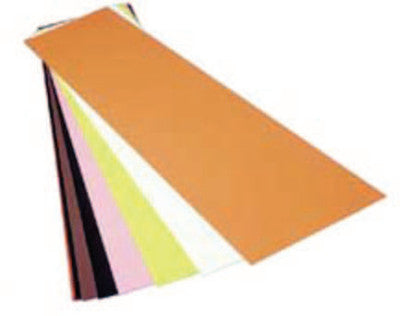

Color Coded Shims, 0.05, Vinyl, 0.04" x 20" x 10"

Easy to cut and resists oil
Eliminates need for micrometer, saves time and reduces error
Minimal compression during use
The color tells the thickness
Thickness tolerances to industry standards
Used for gaskets, special parts and various manufacturing applications

Quantity 1EA

Specifications

Color=Clear
Elongation [Nom]=180 %
Length [Nom]=20 in
Material=Vinyl
Operating Temp. [Max]=155 F
Operating Temp. [Min]=-10 F
Packing Type=Sheet

Quantity=1 per package
Tensile Strength [Max]=14,000 psi
Thickness Tolerance (+) [Max]=0.05
Thickness Tolerance (-) [Min]=0.05
Thickness [Nom]=0.04 in
Type=Shim-Plastic
Width [Nom]=10 in
Wt.=0.38 lb
