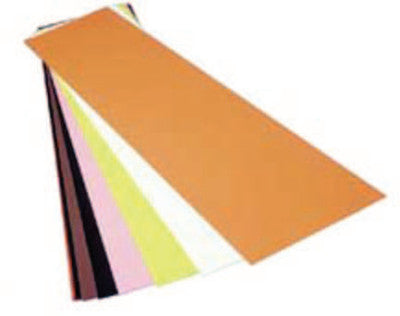

Color Coded Shims, 0.05, Polyester, 0.001" x 20" x 5"

Easy to cut and resists oil
Eliminates need for micrometer, saves time and reduces error
Minimal compression during use
The color tells the thickness
Thickness tolerances to industry standards
Used for gaskets, special parts and various manufacturing applications

Quantity 5SHE/PAK

Specifications

Color=Amber
Elongation [Nom]=90 %
Length [Nom]=20 in
Material=Polyester
Operating Temp. [Max]=300 F
Operating Temp. [Min]=-90 F
Packing Type=Sheet

Quantity=5 per pack
Tensile Strength [Max]=30,000 psi
Thickness Tolerance (+) [Max]=0.05
Thickness Tolerance (-) [Min]=0.05
Thickness [Nom]=0.001 in
Type=Shim-Plastic
Width [Nom]=5 in
Wt.=0.25 lb
